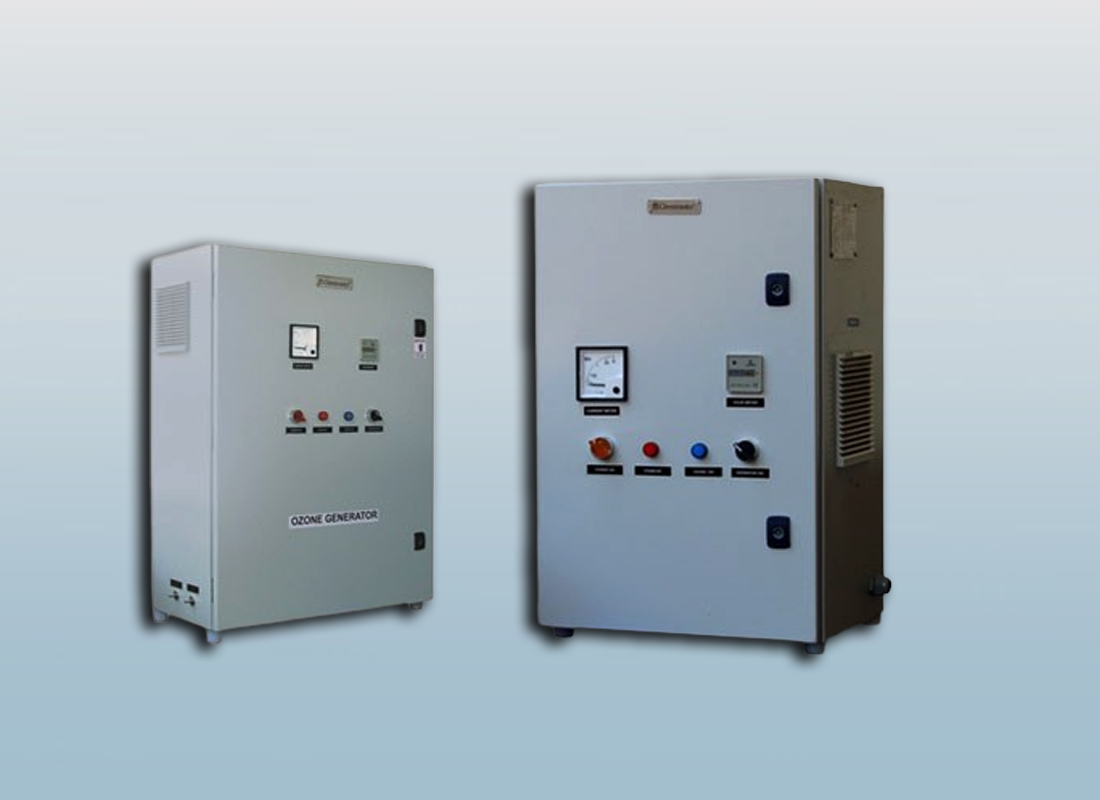

Portable Ozone Generator

Introduction

CHEMOZONETM heavy commercial & industrial Ozone generator is very widely & effectively used in many industrial applications for water & waste water treatment. This range of ozone generators are used in tertiary treatment of sewage & effluent treatment. CHEMOZONETM Ozone generators are specifically designed for swimming pool and cooling tower water treatment. OG/HC & OG/HI series of ozone generators are industrial grade & can operate 24 x 7 x 365. Major design advantage of these rang is their capability of producing high ozone concentration at lower operating power.

Features

  • Heavy Commercial & Industrial use where high ozone concentration is required
  • Ozone output - 10 G/Hr - 1000 G/hr
  • Ozone Concentration - 70 - 140 G/m ³
  • Mainly used for waste water, swimming pool, cooling tower water treatment & similar water & waste water application
  • Internal & outer Ozone cell electrodes are forced water cooled.

System Specification

  • Make : CHEMOZONETM
  • Ozone Out Put : 10 G/hr - 1 kG / hr 1 6
  • Ozone Concentration : 80 G/m³ - 140 G/m3 ²
  • MOC of Ozone Cell : SS 316 L
  • Enclosure - MOC : Carbon Steel
  • Enclosure - Finish : RAL 7035, Structure Powder Coated
  • Dielectric : Precision Ceramic
  • Corona Discharge : 0.6 - 0.9 W/cm²
  • Power Efficiency : 6.0 - 8.0 kW/Kg of O³
  • Cell Electrode Cooling : Internal & External
  • Cell Cooling Medium : Forced Water
  • Power Supply : Switch Mode Power Supply (SMPS)
  • Power Amplifier : IV - Generation IGBT Technology
  • High Frequency Transformer : Forced Air Cooled Ferrite Core
  • Indicators : Power + Stand By + Ozone ON
  • Variable Ozone Control : 25 % - 100 %
  • Service Indicator : Non Re-settable Hr Meter
  • Operating Temperature : 15 °C - 40 °C
  • Line Voltage : 230 V ac; 50 HZ / 110 V ac; 60 Hz
  • Installation Condition : Floor / Wall
  • Specified Life : 20,000 working Hrs 4
  • Standard Usage : 24 x 7 x 365 - Commercial & Industrial Use
  • Feed Gas : Oxygen
  • Concentration : > 90 %
  • Due Point : > -45° C.

Protections & Safety :

Power Board
  • Line Voltage surge & spike
  • Delayed Soft Start off
  • Over temperature protection
  • Over Current
  • Over Voltage
  • Under Voltage
  • High Voltage Short Circuit
  • High Voltage Open Circuit
  • Feed Gas Non Return Valve
  • Feed Gas Safety Interlock
  • Ozone Non Return Valve
  • Fail Proof Back Flow Prevention
  • Heat Exchanger For Feed Gas
  • Anti-corrosion lacquer coating
Application Industries
  • UL - Certified
  • CE - Marked
  • Electricals Electronics - IP 54
  • Ozone Cell - IP 65

Sensors
  • Cooling Water Flow
  • Cooling Fan Operation
  • Feed Gas Flow
  • Cooling Water Temperature
  • Power IGBT Temperature
  • ORP Controller Connectivity

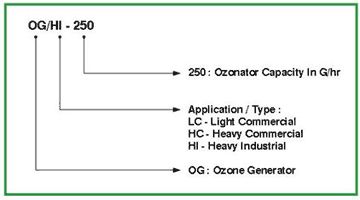

Standard Models - Water & Waste Water Ozonator

Model No. Ozone Output[G/hr] Oxygen Flow[LPM] Concentration[G/m³] Weight [Kg] Power [W]
OG/HC - 15 5 - 18 1 - 4 120 - 80 28 150
OG/HC - 35 13 - 20 2 - 5 140 - 100 30 300
OG/HC - 50 22 - 50 3 - 10 140 - 100 35 500
OG/HC - 75 30 - 55 5 - 15 130 - 80 55 700
OG/HC - 100 50 - 110 8 - 20 130 - 100 90 800
Model No. Ozone Output [G/hr] Oxygen Flow [LPM] Concentration [G/m³] Weight [Kg] Power [kW]
OG/HI - 100 70 - 100 8 - 20 130 - 80 90 0.8
OG/HI - 200 130 - 180 16 - 34 140 - 100 95 1.6
OG/HI - 300 200 - 250 34 - 50 140 - 100 125 2.4
OG/HI - 500 300 - 350 40 - 50 130 - 80 130 3.2
OG/HI - 600 400 - 630 50 - 85 130 - 100 175 4
OG/HI - 800 500 - 750 65 - 85 130 - 100 245 4.8
OG/HI - 1000 600 - 1400 65 - 165 130 - 100 325 6.5

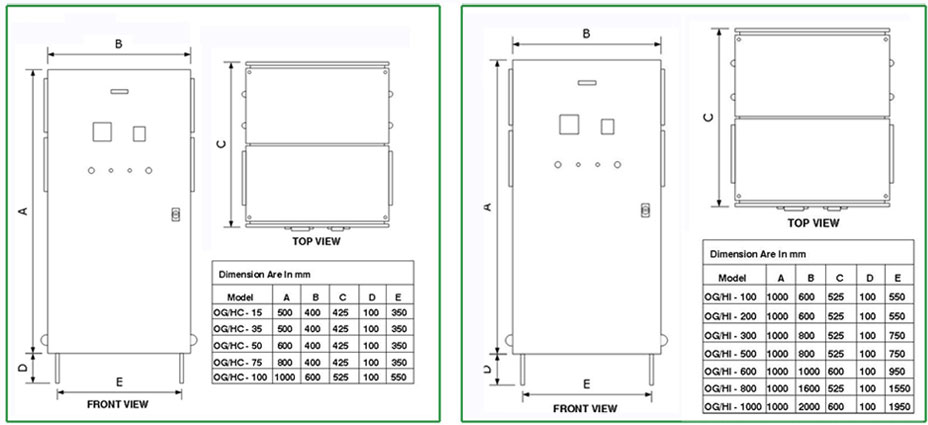

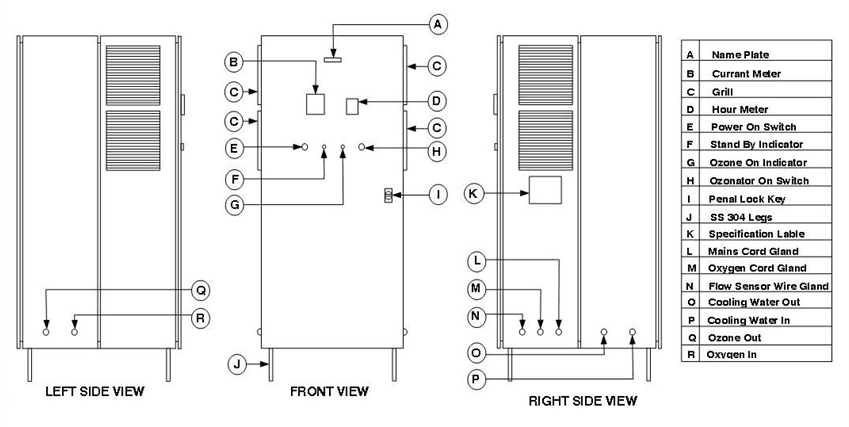

waste water
waste water
waste water

Application :

  • Air Disinfection
  • Soak Disinfection
  • Clean Room
  • Odor destruction in Air
  • Smoking Lounges
  • Post Fire Odor destruction
  • STP foul odor destruction
  • Enhance Indoor Air Quality
  • VOC reducing in Air
  • Drinking & Process water Treatment
  • Residential swimming pools
  • Public & Olympic size swimming pools
  • Pulses & Grains Soak disinfection
  • Fruits & Veggies Soak disinfection
  • Meat & Sea food Soak disinfection
  • Processing & Packing
  • Short & Long term Storage
  • Cold & Deep Storage
  • Commercial Laundry washer
  • Denim & Fabric Bleaching
  • STP & ETP Tertiary Treatment
  • COD & BOD Reduction
  • Cooling Tower Water Treatment

Industries :

  • Research & Development (R & D)
  • Air Handling Units (AHUs)
  • Dairy
  • Aquaculture
  • Garment
  • Hospitals, OT, ICU
  • Housekeeping
  • Hotels, Restaurants, Resorts
  • Corporate Building
  • Pharmaceuticals
  • Malls & Theaters
  • Food Processing
  • Beverage
  • Packing & Storage
  • Clean Rooms
  • Pulses & Grains Soak disinfection
  • Fruits & Veggies Soak disinfection
  • Meat & Sea food Soak disinfection
  • Processing & Packing
  • Short & Long term Storage
  • Cold & Deep Storage
  • Commercial Laundry washer
  • Denim & Fabric Bleaching
  • STP & ETP Tertiary Treatment
  • COD & BOD Reduction
  • Cooling Tower Water Treatment
