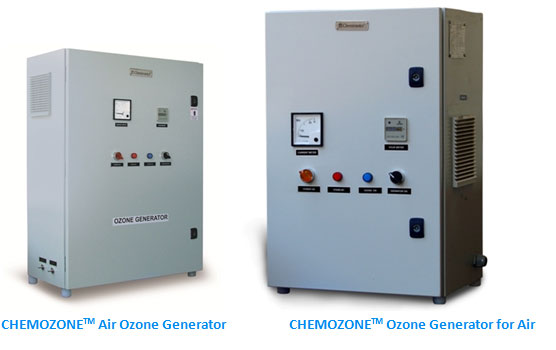

Air Ozonator


Air ozone generator is very widely & effectively used in many industrial applications for foul & organic odor reduction in exhaust line. When air ozone generator is used for industrial odor control, you do not have to use carbon filter or any form of air scrubbers. One of the very common uses of CHEMOZONE T air ozone is for reduction of foul odor from STP exhaust duct. Air ozone generators are also used for enhancing indoor air quality in commercial buildings to reduce sick building syndromes & disinfect indoor air. With this Co2 levels can also be maintained.

In hospitals & ICU rooms air ozone generators are used for air disinfection & as fumigation. In many industries air ozone generators are used in production, processing, packing & storage applications. Using ozone air is quickly disinfected & processed product shelf life is enhanced many folds

Features
• Light commercial use with medium ozone concentration is suitable.
• Ozone output - 05 G/Hr - 50 G/hr
• Ozone Concentration - 40 - 90 G/m 3
• Mainly for air ozonation & applications where cell cooling water is not feasible.
• Internal & outer Ozone cell electrodes with radiator fins & forced air cooled.



The chemtronics ozone generators are cheap, easy to use and complete ideal for air applications.. Ozone is produced starting from air sucked from ambient, compressed and transformed in ozone This new line of ozone generators is fully assembled and tested in factory. It includes mechanical, electrical and instrumental fittings including compressor.

System Specification
Make : CHEMOZONE ™
Ozone Out Put : 05 G/hr -50 G / hr 1 6
Ozone Concentration : 40 G/m ³ - 90 G/m ²
MOC of Ozone Cell : SS 316 L / Ceramic
Enclosure - MOC : Carbon Steel
Enclosure - Finish : RAL 7035, Structure Powder Coated
Dielectric : Precision Ceramic
Corona Discharge : 0.6 - 0.9 W/cm²
Power Efficiency : 6.0 - 8.0 W/g of O³
Cell Electrode Cooling : Internal & External
Cell Cooling Medium : Forced Air
Power Supply : Switch Mode Power Supply (SMPS)³
Power Amplifier : IV - Generation IGBT Technology
High Frequency Transformer : Forced Air Cooled Ferrite Core
Indicators : Power + Stand By + Ozone ON
Variable Ozone Control : 25 % - 100 %
Service Indicator : Non Re-settable Hr Meter
Operating Temperature : 15 °C - 40 °C
Line Voltage : 230 V ac; 50 HZ / 110 V ac; 60 Hz
Installation Condition : Floor / Wall
Specified Life : 20,000 working Hrs 4
Standard Usage : 24 x 7 x 365 - commercial & Industrial Use
Feed Gas : Oxygen
Concentration : > 90 %
Due Point : > -45 °C


Protections & Safety :
Power Board
: Line Voltage surge & spike
: Delayed Soft Start off
: Over temperature protection
: Over Current
: Over Voltage
: Under Voltage
: High Voltage Short Circuit
: High Voltage Open Circuit
: Feed Gas Non Return Valve
: Feed Gas Safety Interlock
: Ozone Non Return Valve
: Fail Proof Back Flow Prevention
: Heat Exchanger For Feed Gas
: Anti-corrosion lacquer coating

Application Industries
: UL - Certified
: CE - Marked
: Electricals Electronics - IP 54
: Ozone Cell - IP 65

Sensors
: Cooling Fan Operation
: Feed Gas Flow
: Power IGBT Temperature
: ORP Controller Connectivity

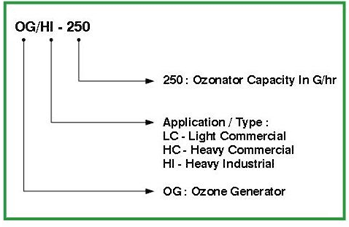

Standard Models - Water & Waste Water Ozonator





Model No. Ozone Output[G/hr] Oxygen Flow[LPM] Concentration[G/m³] Weight [Kg] Power [W]
OG/LC - 2 1.5 - 3.0 0.5 - 2.0 60.0 - 30.0 10 40
OG/LC - 5 3.0 - 6.0 1.0 - 3.0 60.0 - 40.0 12 85
OG/LC - 10 6.0 - 12.0 2.0 - 5.0 60.0 - 40.0 13 150
OG/LC - 20 9.0 - 18.0 3.0 - 8.0 60.0 - 40.0 16 250
OG/LC - 25 13.0 - 24.0 4.0 - 10.0 60.0 - 40.0 24 300
OG/LC - 30 15.0 - 30.0 5.0 - 13.0 60.0 - 40.0 30 400
OG/LC - 40 25.0 - 42.0 7.0 - 18.0 60.0 - 40.0 33 575
OG/LC - 50 30.0 - 48.0 8.0 - 20. 60.0 - 40.0 35 700

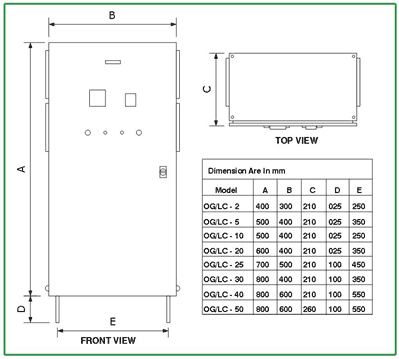

Air  Ozonator dimension
Air  Ozonator dimension

Application
Air Disinfection
Soak Disinfection
Clean Room
Odor destruction in Air
Smoking Lounges
Post Fire Odor destruction
STP foul odor destruction
Enhance Indoor Air Quality
VOC reduction in Air
Pulses & Grains Soak disinfection
Fruits & Veggies Soak disinfection
Meat & Sea Food Soak disinfection
Processing & Packing
Short & Long term Storage
Cold & Deep Storage
Commercial Laundry washer
Denim & Fabric Bleaching
Industries
Research & Development (R & D)
Air Handling Units (AHUs)
Dairy
Aquaculture
Garment
Hospitals, OT, ICU
Housekeeping
Hotels, Restaurants, Resorts
Corporate Buildings
Pharmaceuticals
Malls & Theaters
Food Processing
Beverage
Packing & Storage
Clean Rooms
Electronics
