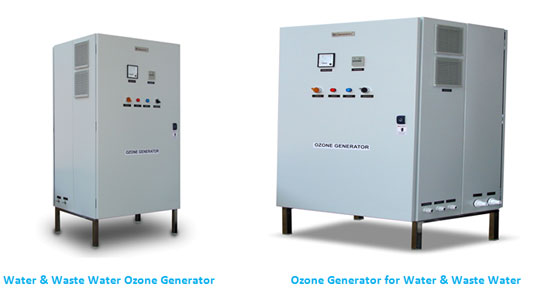

Water & Waste Water Ozonator

CHEMOZONE TM heavy commercial & industrial Ozone generator is very widely & effectively used in many industrial applications for water & waste water treatment. This range of ozone generators are used in tertiary treatment of sewage & effluent treatment. CHEMOZONETM Ozone generators are specifically designed for swimming pool and cooling tower water treatment. OG/HC & OG/HI series of ozone generators are industrial grade & can operate 24 x 7 x 365. Major design advantage of these rang is their capability of producing high ozone concentration at lower operating power.

Features

• Heavy Commercial & Industrial use where high ozone concentration is required.
• Ozone output – 10 G/Hr – 1000 G/hr
• Ozone Concentration – 70 – 140 G/m³
• Mainly used for waste water, swimming pool, cooling tower water treatment & similar water & waste water application.
• Internal & outer Ozone cell electrodes are forced water cooled.

System Specification

Make : CHEMOZONETM
Ozone Out Put : 10 G/hr – 1 kG / hr 1 6
Ozone Concentration : 80 G/m³ - 140 G/m3 ²
MOC of Ozone Cell : SS 316 L
Enclosure – MOC : Carbon Steel
Enclosure - Finish : RAL 7035, Structure Powder Coated
Dielectric : Precision Ceramic
Corona Discharge : 0.6 – 0.9 W/cm2
Power Efficiency : 6.0 – 8.0 kW/Kg of O3
Cell Electrode Cooling : Internal & External
Cell Cooling Medium : Forced Water
Power Supply : Switch Mode Power Supply (SMPS) 3
Power Amplifier : IV – Generation IGBT Technology
High Frequency Transformer : Forced Air Cooled Ferrite Core
Indicators : Power + Stand By + Ozone ON
Variable Ozone Control : 25 % - 100 %
Service Indicator : Non Re-settable Hr Meter
Operating Temperature : 15° C - 40° C
Line Voltage : 230 V ac; 50 HZ / 110 V ac; 60 Hz
Installation Condition : Floor / Wall
Specified Life : 20,000 working Hrs 4
Standard Usage : 24 x 7 x 365 – Commercial & Industrial Use
Feed Gas : Oxygen
Concentration : > 90 %
Due Point : > -45° C


Protections & Safety :

Power Board : Line Voltage surge & spike
: Delayed Soft Start off
: Over temperature protection
: Over Current
: Over Voltage
: Under Voltage
: High Voltage Short Circuit
: High Voltage Open Circuit
: Feed Gas Non Return Valve
: Feed Gas Safety Interlock
: Ozone Non Return Valve
: Fail Proof Back Flow Prevention ⁵
: Heat Exchanger For Feed Gas ⁵
: Anti-corrosion lacquer coating
Enclosure : UL – Certified
: CE – Marked
: Electricals Electronics – IP 54
: Ozone Cell – IP 65
Sensors

Cooling Water Flow
Cooling Fan Operation
Feed Gas Flow
Cooling Water Temperature
Power IGBT Temperature
ORP Controller Connectivity

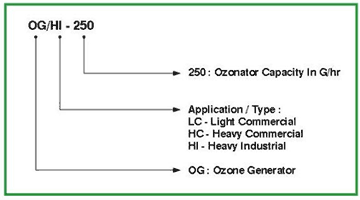

Standard Models – Water & Waste Water Ozonator

Model
No.

Ozone Output
[G/hr]

Oxygen Flow
[LPM]

Concentration
[G/m³]

Weight
[Kg]

Power
[W]

OG/HC - 15

5 - 18

1 - 4

120 - 80

28

150

OG/HC - 35

13 - 20

2 - 5

140 - 100

30

300

OG/HC - 50

22 - 50

3 - 10

140 - 100

35

500

OG/HC - 75

30 - 55

5 - 15

130 - 80

55

700

OG/HC - 100

50 - 110

8 - 20

130 - 100

90

800



Model
No.

Ozone Output
[G/hr]

Oxygen Flow
[LPM]

Concentration
[G/m³]

Weight
[Kg]

Power
[kW]

OG/HI - 100

70 - 100

8 - 20

130 - 80

90

0.8

OG/HI - 200

130 - 180

16 - 34

140 - 100

95

1.6

OG/HI - 300

200 - 250

34 - 50

140 - 100

125

2.4

OG/HI - 500

300 - 350

40 - 50

130 - 80

130

3.2

OG/HI - 600

400 - 630

50 - 85

130 - 100

175

4

OG/HI - 800

500 - 750

65 - 85

130 - 100

245

4.8

OG/HI - 1000

600 - 1400

65 - 165

130 - 100

325

6.5



Application
Air Disinfection
Soak Disinfection
Clean Room
Odor destruction in Air
Smoking Lounges
Post Fire Odor destruction
STP foul odor destruction
Enhance Indoor Air Quality
VOC reducing in Air
Drinking & Process water Treatment
Residential swimming pools
Public & Olympic size swimming pools

Pulses & Grains Soak disinfection
Fruits & Veggies Soak disinfection
Meat & Sea food Soak disinfection
Processing & Packing
Short & Long term Storage
Cold & Deep Storage
Commercial Laundry washer
Denim & Fabric Bleaching
STP & ETP Tertiary Treatment
COD & BOD Reduction
Cooling Tower Water Treatment
Industries
Research & Development (R & D)
Air Handling Units (AHUs)
Dairy
Aquaculture
Garment
Hospitals, OT, ICU
Housekeeping
Hotels, Restaurants, Resorts
Corporate Building
Pharmaceuticals
Malls & Theaters
Food Processing
Beverage
Packing & Storage
Clean Rooms

Electronics
Dairy
Agriculture
Textile & Garment
Leather & Tanneries
Cooling Towers
Fruit & Veggies
Meat & Sea Food
Domestic Waste Water
Industrial Waste Water
Laundry Waste Water
Re cycling of liquid Waste
Paper & Pulp
Power Plants
Steel Plant
